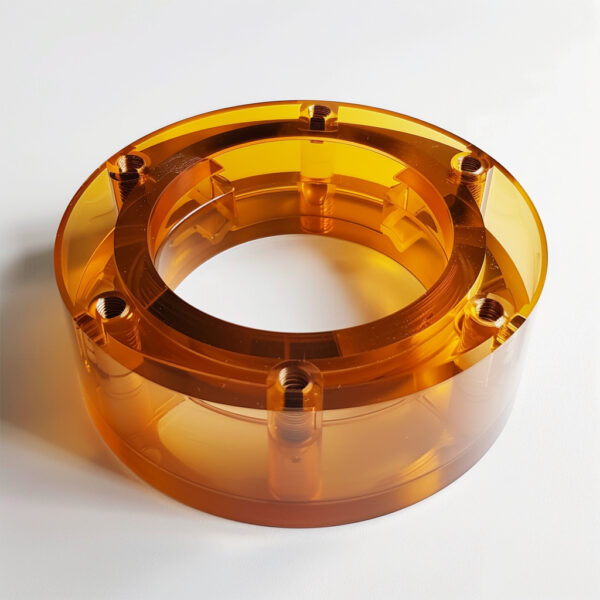

Product name

PEI

Material name

Polyetherimide (PEI)

Overview

Polyetherimide (PEI) is a high-performance thermoplastic belonging to the polyimide family. Naturally amber-transparent, PEI offers excellent mechanical strength, dimensional stability, and high heat resistance. It also features inherent flame retardancy and superior electrical insulation. Because of its stability and machinability, PEI is widely used in demanding engineering applications and can be processed by injection molding, extrusion, or CNC machining.

Characteristic

Continuous use temperature up to 170°C
High mechanical strength and rigidity, maintains shape under heavy loads
Excellent dimensional stability, low thermal expansion and shrinkage
Outstanding electrical insulation properties
Naturally flame retardant, rated UL94 V0 without additives
Good chemical resistance, especially to oils and hydrocarbons
Easily machinable, weldable, and suitable for surface coating or bonding

Applications

Electrical and electronic components: connectors, sockets, housings, and circuit substrates Aerospace: heat-resistant covers, enclosures, and structural parts Medical devices: reusable trays, sterilization tools, and components Automotive: under-the-hood components, lighting housings, and brackets Industrial engineering: gears, bushings, precision mechanical parts

Standard

Sheet unit(mm)

Thickness	Width	Length
10t ~ 80t	1000	2000

Rod unit(mm)

Thickness	Width
20Ø ~ 300Ø	1000
