Length (mm)

500mm

Width (mm)

300mm

Thickness (T)

T2 (2mm)

Technical Tolerance

Length (mm)

1000mm

Diameter (Ø)

Ø10 (10mm)

Technical Tolerance

Quantity

Product name

PEEK

Material name

PEEK (Polyether ether ketone)

Overview

PEEK is a high-performance thermoplastic obtained by extrusion molding of polyether ether ketone resin. It has similar chemical resistance and water resistance to PPS (polyphenylene sulfide), but has a higher continuous operating temperature (250°C / 480°F) than PPS (220°C / 426°F). Due to its high heat resistance and flame retardancy even in harsh working environments such as hot water or steam, PEEK is widely used in various fields such as electrical, electronic, and aerospace industries.

Characteristic

Excellent water resistance
Maintaining permanent properties under hot water and steam
Excellent radiation resistance (No physical changes observed at cumulative gamma radiation dose of 1,000 Mrad or higher)
Excellent flame retardancy and electrical insulation
FDAapproved (Unfilled PEEK)

Applications

Various parts for manufacturing lines, sound equipment, medical devices, semiconductors, LCD manufacturing equipment parts, inspection device parts, manufacturing jigs, nuclear parts, electrical components, various precision instrument parts, food processing line parts, chemical plant parts, welding equipment parts, plating processing parts, metal surface treatment parts, insulation material, and thermal insulation material, etc.

Standard

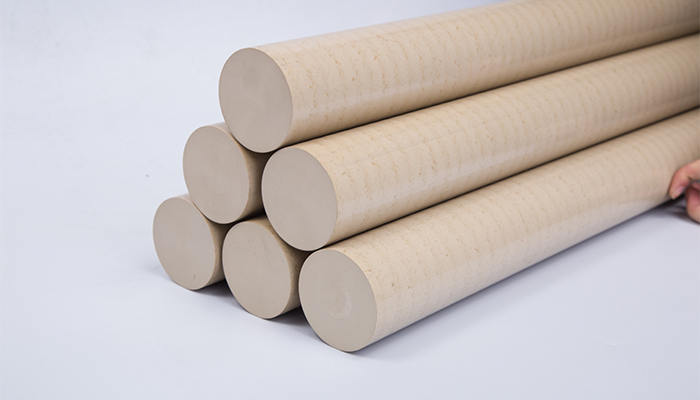

Rod unit(mm)

Thickness	Width
50Ø ~ 200Ø	1000 2000 3000

Sheet unit(mm)

Thickness	Width	Length
5T ~ 100T	610 1000 1200	1000 2000 3000 2400

Hokkaido	¥1,815	North Tohoku	¥1,507
South Tohoku	¥1,419	Kanto	¥1,221
Chubu	¥1,331	Kansai	¥1,243
Chugoku	¥1,419	Shikoku	¥1,331
Kyushu	¥1,419	Okinawa	Quoted separately
